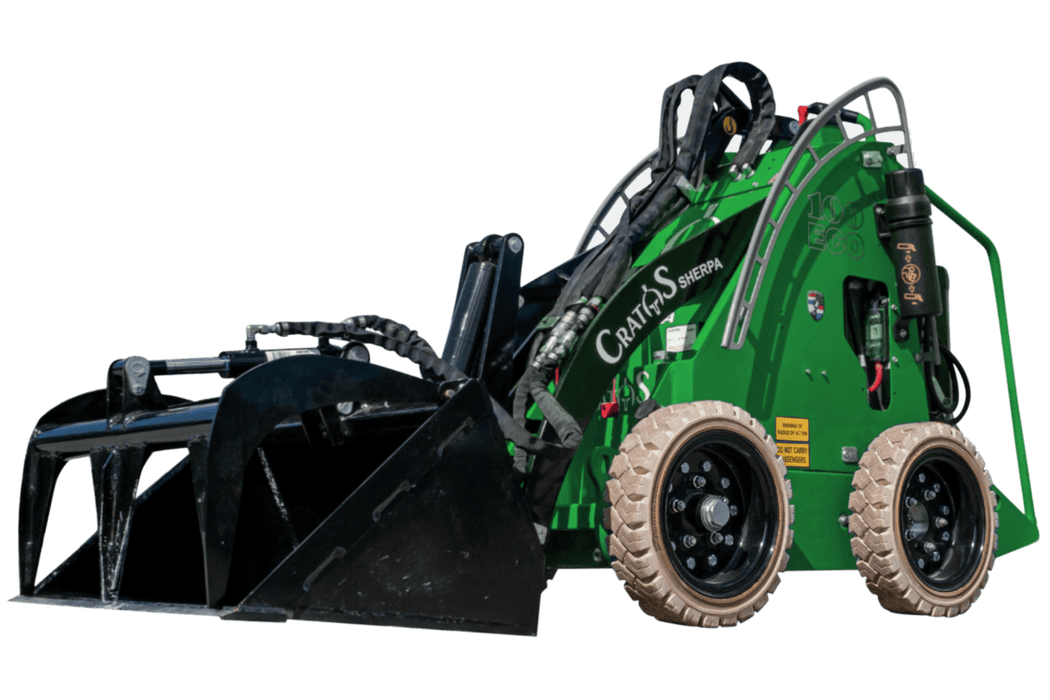

A battery-powered mini skid-steer that easily fits through a standard door, has no local emissions, reduces the risk of injury, & saves on labor! The 100ECO Electric compact loader can do it all with an extensive range of attachments available. This electric skid-steer is a perfect alternative to manual labor, & with its compact size, can get into tight spaces other skid-steers can't.
The combined benefits of its compact size & zero emissions allows for this electric skid steer to be operated indoors. This makes it the perfect machine for a wide range of interior applications:
- Hospitals
- Schools/ Universities
- Warehouses
- Government Buildings
- Offices
- Municipalities
- Plumbing
- Remodeling
ELECTRICAL SYSTEM
- Motor Type: DC Motor (Brushless)
- Motor Capacity: 3.1 kWh / 4.2 HP
- Motor Speed: 1,850 rpm
- Voltage: 24V
- Battery Capacity: 8.6 kWh
- Runtime: 7-9 hrs
- Battery Life Cycles: up to 3,000
- Recharge time on 110v: 14 hr
OPERATIONAL SPECS
- Maximum Height w/ Bucket Up: 100”
- Minimum Height: 47”
- Maximum Length w/ Bucket: 85”
- Minimum Length: 59.8”
- Width: 29.9”
- Max. Coupling Plate Hinge Point Height: 81”
- Bucket Angle when Dumping: 51 degrees
- Dump Height: 73”
- Length from Front Wheel to Bucket when Dumping: 7”
- Wheelbase: 26”
- Ground Clearance: 5”
- Turning Radius: 63”
- Gradeability: 14 degrees
- Ground Pressure Rating: 27.5 psi
- Breakout Force: 1,315 lbs
- Tractive Force: 730 lbs
- Machine Weight: 1,770 lbs
- Rating Tipping Load: 620 lbs
- Speed: up to 2 mph
HYDRAULIC SYSTEM
- Hydraulic Tank Capacity: 10 gal
- Hydraulic Flow: up to 4 gpm
- Hydraulic Pressure: 2,175 psi
