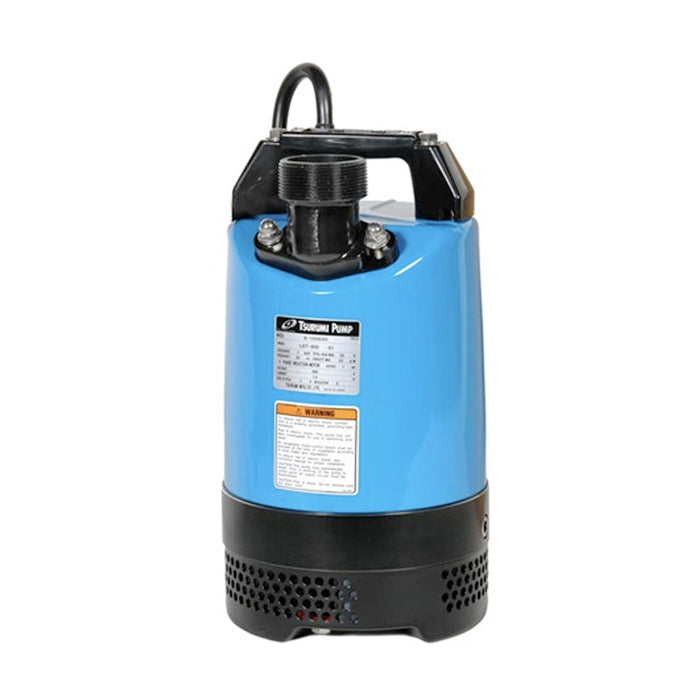

LB-800 Manual Electric Submersible Pump

Save $90.00
Original price $599.00
Current price $509.00

LB-800 Slimline design pumps allow to fit into 8" pipes. Powerful pump built with durable materials in an easy handling design. Top discharge provides maximum motor cooling efficiency allowing continuous duty operation at low levels and extended dry-run capability.

  • Designed to fit an 8" pipe.
  • Up to 59’ shut off head.
  • Available in 230V single-phase for lower amperage draw and longer cable extensions.
  • Dual Inside Mechanical Seal With SiC faces provides longer operational life.
  • Oil Lifter provides lubrication of the seal faces. (Patented)
  • LB-800 (Single Phase) and LBT-800 (Three Phase) are available. (Optional Accessories)
  • Float Switch for automatic operation TS-302 for 115V, TS-303 for 230V.

Motor Output (HP): 1
Phase: Single
Discharge Bore (in.): 2
Voltage/Amp: 115/9.6
Cable Length (ft.): 50
Dimension (Dia x H, in.): 7-9/16 x 13-7/16
Continuous Running Water Level (in.): 2
Pump Weight (lbs.): 35
