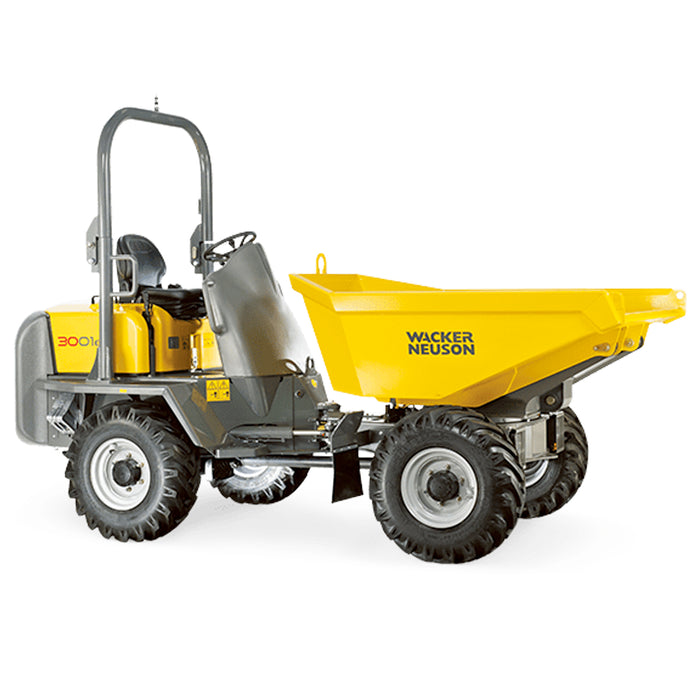

Wacker Neuson 3001 Wheel Dumper
With its three different types of skip (incl. lower dumping height), a top speed of 25 km/h, high ground clearance and excellent off-road capability the 3001 is top of the class. Simply complete and completely simple.
- Low maintenance hydrostatic four-wheel drive, maximum payload 3,000 kg, optional cab available ex-works.
- 3 types of skip: Front tipping skip (standard), swivel tipping skip (optional); skip with lower dumping height (2,200 mm)
- High ground clearance.
- Large service and maintenance access with through hinged one-piece engine hatch.
- A top speed of 25 km/h gets transport jobs done fast.
Hydrostatic all-wheel drive
- total focus on the job, no busy shifting of gears
- one central hydraulic engine drives both axles via a cardan shaft
- hydrostatic braking effect as soon as the foot is taken off the accelerator pedal
- low-wear drive for reduced service and maintenance costs
- controlled delay for regulated switching, thus no abrupt change of drive
- accelerate from 0 to maximum speed of 28km/h without traction loss
|Front tip skip||Swivel tip skip||Low skip|
|Shipping weight kg||2,410||2,550||2,410|
|Skip capacity level l||1,500||1,300||1,020|
|Skip capacity heaped l||1,850||1,750||1,300|
|Skip capacity water level l||1,160||900||820|
Engine / Motor
|Engine / Motor manufacturer||Yanmar||Yanmar||Yanmar|
|Engine / Motor type||3TNV88||3TNV88||3TNV88|
|Engine / Motor||Diesel||Diesel||Diesel|
|Engine performance acc. to ISO 3046/1 kW||26||26||26|
|Engine RPM rpm||2800||2800||2800|
|Travel speed km/h||22||22||22|
|Articulation angle °||37||37||37|
|Pendulum angle °||15||15||15|
|Turning radius mm||3,650||3,650||3,650|
|L x W x H mm||3980 x 1785 x 2670||4140 x 1785 x 2670||4205 x 1785 x 2670|
|Steering pump||axial piston pump||axial piston pump||axial piston pump|
|Flow rate l/min||47||47||47|
|Operating pressure bar||360||360||360|
|Duty pump||gear pump||gear pump||gear pump|
|Flow rate l/min||47||47||47|
|Operating pressure bar||220||220||220|
|Sound level (LwA) dB(A)||101||101||101|
3001 Standard components
- Safe payload 3,000 kg
- Length / Width / Height (ROPS): 3,980 / 1,860 / 2,670 mm
- Hydraulic power front skip, 1,500 l struck / 1,850 l heaped
- Safety bar (ROPS)
- Speed: 22 km/h
- Tires: 11.5 / 80-15.3 (Mitas TS-05) Profile with very good traction also for use in industrial operation
- Water-cooled YANMAR diesel engine 3TNV88, 3-cylinder / 1,642 ccm, power output 26 kW (35 HP), rated speed 2,800 min-1
- Permanent four wheel drive
- Hydrostatic automotive drive
- Gear pump (45 l/min)
- Hydrostatic drive working also as hydrostatic brake
- Hydrostatic centre-pivot steering (Load sensing)
- Combined brake-inch pedal
